Functions and Features (1)

  1. Grid-connected photovoltaic (GCPV) and off-grid photovoltaic (OGPV) systems are installed in same board.
  2. This product has been verified the CE marking.

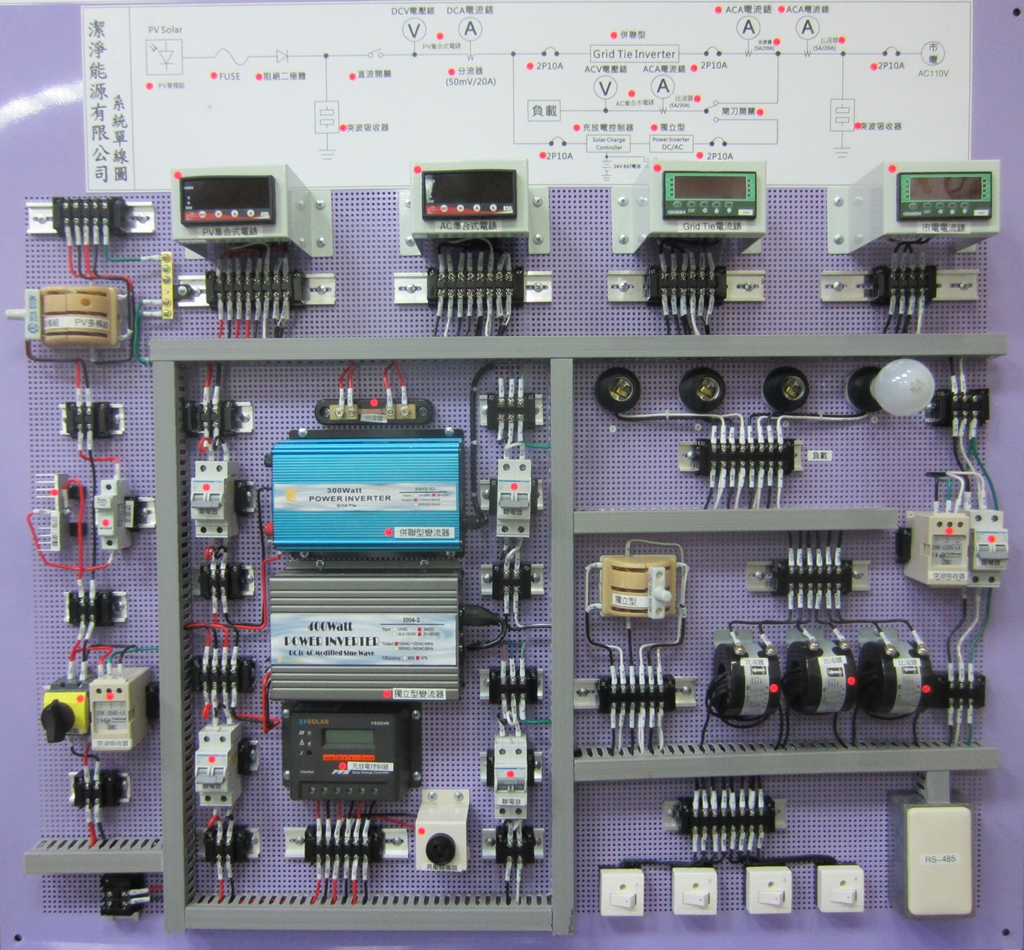

  3. This is a wall-mounted teaching platform.
  4. All the component are replaceable.
  5. Clear marks of architecture are used as guidelines for students.
  6. Because operating points are separated from circuit components, this system can withstand repeated operation.
  7. Operational manuals, PPT files, relevant materials and completed employee training are available.
  8. Various units such as DC / AC power shunt, inverters and protection devices are clearly marked.
  9. This system can expand to a single-point and multi-point series-parallel solar panel power generation system.

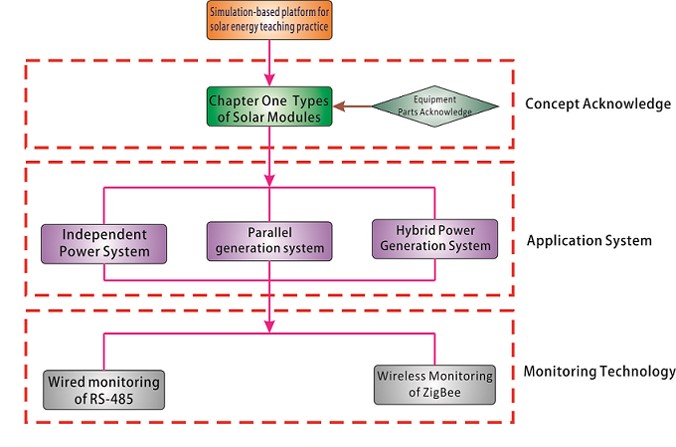

Experiment Items

  • Experiment I. Wire practice of DC power supply and digital instrumentation.
  • Experiment II. Wire practice of AC power supply and digital instrumentation.
  • Experiment III. Efficiency measurement and wiring practice of independent converter and digital instrumentation.
  • Experiment IV. Load practice of functions of independent converter.
  • Experiment V. Efficiency measurement and wiring practice of shunt parallel converter and digital instrumentation.
  • Experiment VI. Load practice of functions of shunt parallel converter.
